Marble and Stone Block Cutting Machine – Multi-Wire Ultra-Thin Diamond Saw
Product Introduction

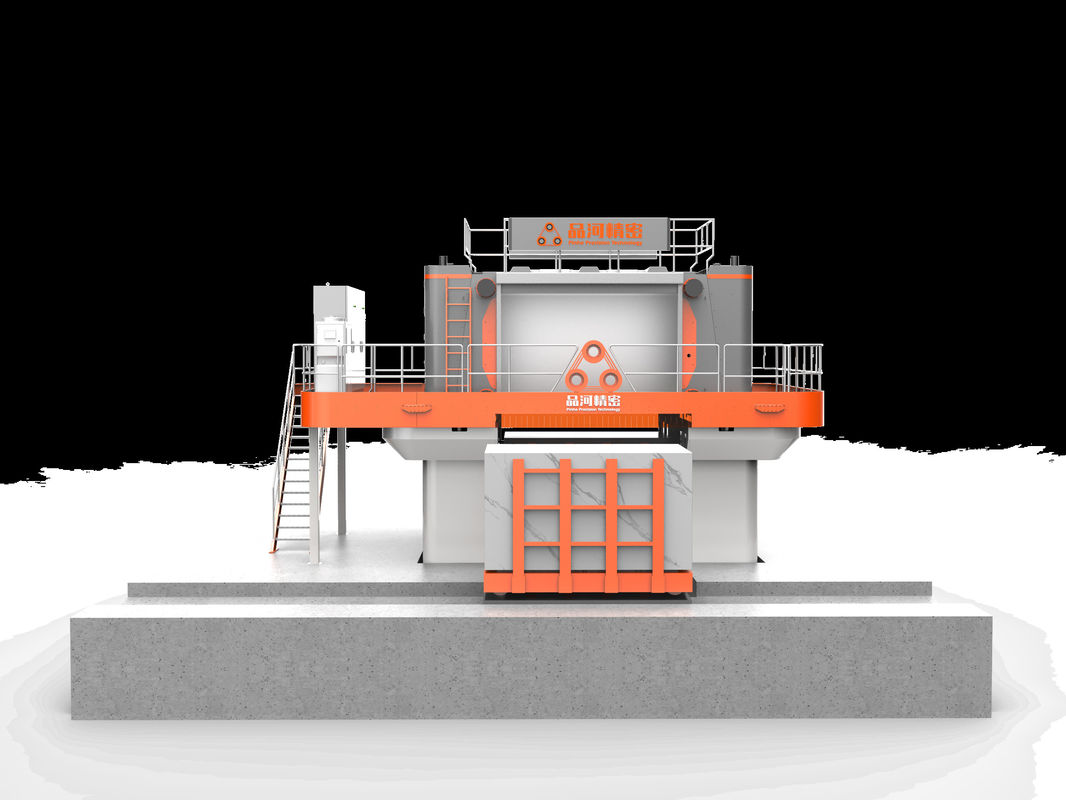

PINHE Modular Gulf-Style Lifting Wire Saw – High-Efficiency Stone Cutting System
Designed for advanced stone fabrication needs, the new-generation Gulf-style lifting wire saw by PINHE introduces a cutting-edge modular construction ideal for streamlined installation and cost-effective deployment. With pre-installed precision-cast support columns and an integrated dual-level operator platform, this system removes the need for conventional concrete foundations or structural reinforcement—cutting down both installation time and overhead expenses.
Built to perform and impress, the machine features a modern industrial aesthetic combined with rugged engineering. Its dual-directional feeding capability—from both the front and side—maximizes cutting flexibility, enhances block handling, and supports higher material throughput. Whether you're retrofitting an existing facility or planning a new build, this modular wire saw delivers unmatched versatility and operational efficiency.
Seamless Transition from Traditional Gang Saws to Modern Wire Saw Technology
Switching from outdated gang saws to the advanced PINHE Gulf-style lifting wire saw is remarkably straightforward and cost-effective. The legacy gang saw equipment can be dismantled, while the new wire saw system is mounted directly onto the existing foundation—eliminating the need for extensive civil works or structural alterations.
This intelligent retrofit approach retains your current block trolley and slab handling systems, ensuring zero disruption to your workflow. It significantly shortens installation time, reduces labor and construction costs, and avoids long production halts. Whether you're modernizing your plant or scaling up production, this upgrade path provides a fast, low-impact solution to enhance cutting speed, precision, and overall operational efficiency.
Enhanced Durability with the Latest Gulf-Style Lifting System
The newly upgraded Gulf-style lifting system introduces several cutting-edge features designed to maximize durability and ensure consistent performance under challenging conditions. The most notable upgrades include reinforced waterproofing for the wire take-up and release chambers, equipped with tightly sealed enclosures at the wire entry and exit points, effectively preventing water from compromising the system.
The advanced oil-lubricated sliding track has been engineered to reduce friction, providing smoother wire movement and extending the system's lifespan by minimizing wear. Additionally, carefully positioned water-resistant baffles around the motor safeguard crucial electrical components from moisture and water mist, ensuring optimal functionality even in high-humidity environments. These innovations significantly enhance the reliability and longevity of the Gulf-style lifting system, making it ideal for use in demanding, wet cutting conditions.
Enhanced Accessibility and Advanced Cooling for Superior Performance
The latest model has been upgraded with a newly integrated observation ladder, significantly improving operator access for wire alignment and adjustment. This feature simplifies the process of setting up and maintaining the wire’s entry and exit points, boosting operational efficiency and minimizing downtime during routine checks.
In addition, the cooling system for both the spindle and motor has undergone a complete redesign. The new layout features dedicated individual water circuits for each component, all interconnected through a centralized mainline. This intelligent cooling system ensures consistent heat dissipation, effectively reducing the risk of overheating. The result is a more reliable, stable, and durable operation, extending the lifespan of critical components while optimizing long-term performance.
Next-Gen Control System with AI-Powered Cloud Integration
The upgraded control system is seamlessly integrated with the PINHE AI-Driven Digital Monitoring Cloud Platform, offering real-time remote monitoring of equipment performance and cutting operations. Enhanced with high-definition smart cameras and millimeter-wave radar sensors, the system ensures precise, automated tracking at every phase of the cutting process.
Through intelligent adjustment of process parameters based on live conditions, the platform delivers closed-loop control, continuously refining cutting methods and optimizing final results. This level of advanced automation not only boosts cutting accuracy but also enhances overall operational efficiency, reduces material waste, and minimizes dependency on operator expertise—ensuring consistent, premium-quality results with maximum productivity
Product Parameters
| Block Entry into Machine |
From side (as picture shown above) |
| Trolley Movement |
Trolley (block) going up |
| Dimension |
6M(L) * 4M(W) * 6.5M(H) |
| Motors |
Siemens Servo Motor
Control System Main Motor 60kw |
| Total Power |
300kw |
| Processing Size |
L3400mm * W2000m * H2200mm |
| Cutting Wire Speed |
0-35m/min |
| Cutting Down Feed |
0-25cm/h |
| Roller Material |
Aviation Aluminum Roller ф350mm |
| Wire Storage |
30-50km |
| G.W |
45 Tons |
| Bearing Housing |
German NSK Bearing with High Speed Housing |
| Wire Diameter |
0.38mm - 0.8mm |
| Main Body |
Cast Iron |
| PLC |
AI Automatic Control System of Siemens |
